adminAccelerating LiDAR Annotation with Cuboid Interpolation: A Practical Workflow Guide
In large-scale LiDAR annotation projects, speed and consistency are critical. Manually annotating every frame in a sequence is not only time-consuming but also inefficient.
This is where Cuboid Interpolation becomes a game-changer.
Instead of annotating frame-by-frame, interpolation allows you to define object positions across key frames — and automatically generate annotations in between.
Let’s break down how this works in a real-world workflow.
What is Cuboid Interpolation?
Cuboid interpolation is a technique used in 3D annotation tools to:
- Track objects across sequential frames
- Reduce manual effort
- Maintain spatial consistency in annotations
You annotate an object in one frame, adjust it in another, and the system predicts its position across intermediate frames.
Why Interpolation Matters in LiDAR Workflows
In domains like autonomous driving, robotics, and defense, datasets involve continuous sequences.
Without interpolation:
- Every frame requires manual labeling
- Annotation costs increase significantly
- Human error becomes more frequent
With interpolation:
- 🚀 Annotation time reduces drastically
- 📈 Consistency improves across frames
- ⚙️ Scalability becomes achievable

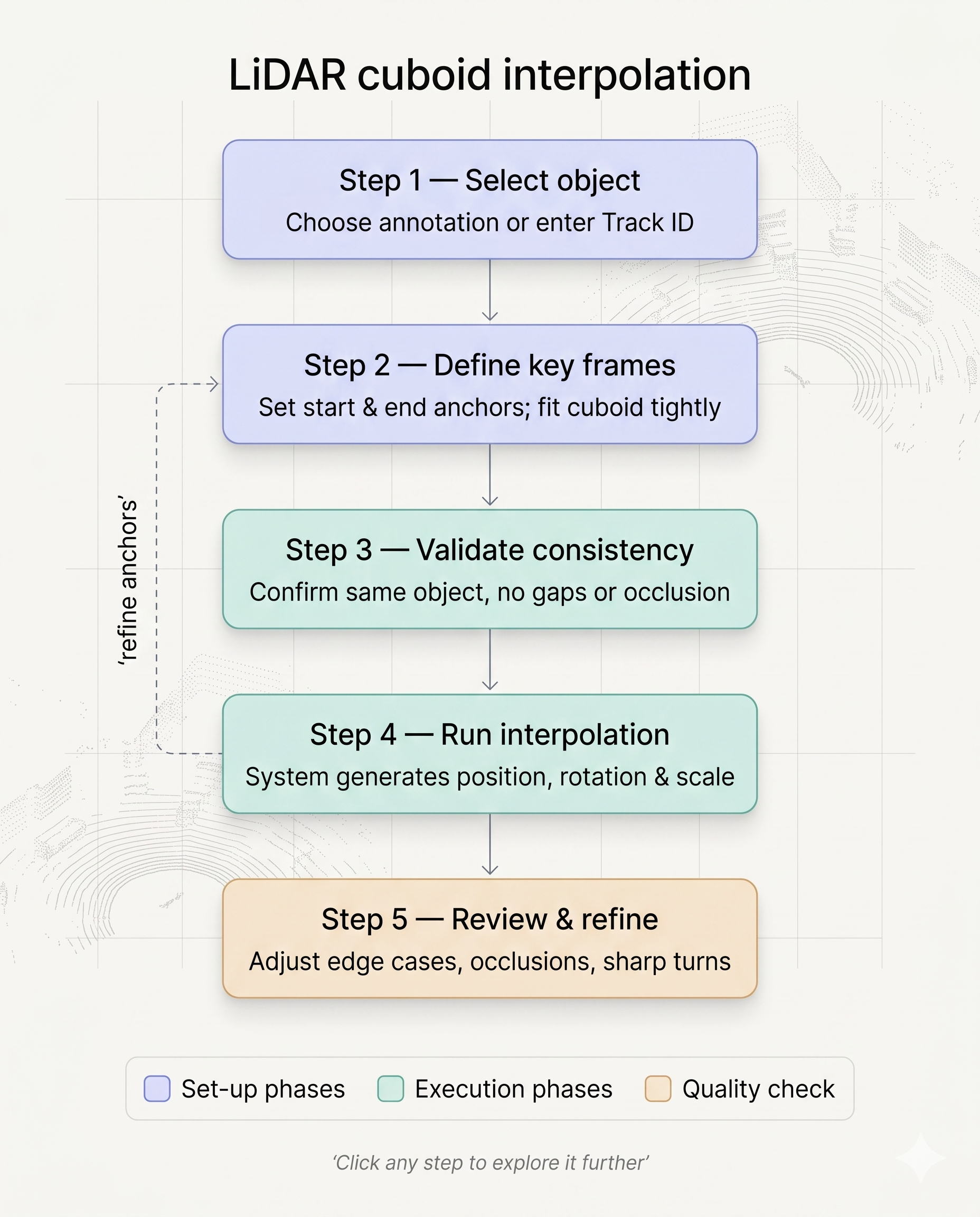

Step-by-Step Workflow: Cuboid Interpolation
Step 1:Select the Object (Track ID)
Start by selecting an existing annotation or entering a Track ID manually.
⚠️ If no annotation is selected, interpolation won’t work — the system needs a reference object.
Step 2:Define Key Frames
Choose:
- Start Frame
- End Frame
These frames act as anchors for interpolation.
In each frame:
- Adjust the cuboid to tightly fit the object
- Ensure orientation and dimensions are accurate
Step 3:Validate Object Consistency
Before interpolating, confirm:
- The object remains the same across frames
- No occlusion or disappearance occurs
- Movement is reasonably continuous
This ensures better interpolation accuracy.
Step 4: Run Interpolation
Click “Interpolate”
The system will:
- Automatically generate cuboids for intermediate frames
- Estimate position, rotation, and scale
Step 5: Review & Refine
Interpolation is powerful — but not perfect.
Always:
- Review generated frames
- Adjust edge cases (sharp turns, occlusions, sudden motion)
- Correct misalignments
Best Practices for High-Quality Interpolation
To maximize accuracy:
✅ Use Clear Anchor Frames
Choose frames where the object is clearly visible and well-defined.
✅ Keep Frame Gaps Reasonable
Long gaps reduce accuracy. Use intermediate anchors if needed.
✅ Handle Occlusions Carefully
Pause interpolation if the object disappears or is blocked.
✅ Maintain Consistent Labeling
Track IDs must remain consistent across frames.
Where This Matters Most
Cuboid interpolation is especially valuable in:
- Autonomous driving datasets
- Warehouse automation
- Drone-based mapping
- Agricultural robotics
- Defense and surveillance systems
These environments involve continuous motion, where interpolation significantly boosts efficiency.
How JTheta.ai Optimizes Annotation Workflows
At JTheta.ai, we focus on building scalable, production-ready data pipelines for AI systems.
Our approach includes:
- High-quality LiDAR dataset curation
- Efficient annotation workflows (including interpolation)
- Domain-specific dataset structuring
- Quality validation pipelines
Because faster annotation means nothing without accuracy and reliability.
Final Takeaway
Cuboid interpolation is not just a feature — it’s a workflow accelerator.
Instead of annotating more, annotate smarter.
By leveraging interpolation effectively, teams can:
- Reduce manual effort
- Improve consistency
- Scale annotation pipelines efficiently
